Sony XS-AW8 Active Underseat Subwoofer Enclosure With Built In Amplifier (FREE Wire Kit & Bass Controller)
Sony bass for small spaces
In recent years, compact powered subwoofers have become popular for their combination of close-up bass heft and small size relative to their sound. Now Sony has applied the knowledge acquired from decades of experience to bring you the XS-AW8 powered sub, offering Sony sound quality in an easy-to-fit package.
With an enclosure height of only 3-1/8", the XS-AW8 is designed to fit under the driver's seat of most vehicles. Its specially-designed shallow-profile subwoofer combines with the rugged sealed cast-aluminum enclosure to deliver the tight, powerful bass response that brings your music to life. The amplifier includes a durable heat-sink to keep the amp and speaker cool without distracting vibration and distortion.
Bring your music to life
The built-in class A/B amp slings 75 watts RMS to the 8" sub, giving you enough low end to feed your senses without overloading your ears. The amp features Sony's proprietary power IC for high fidelity and enhanced dynamic range. The amp connections and controls are all mounted on a single panel on one end of the enclosure, making wiring and adjustments simple. The package also features a wired remote for handy control, along with line-level and speaker-level inputs that make it compatible with most car systems.
When you're looking for big sound in a small package, Sony's XS-AW8 will bring you the performance you need in a compact package, complete with the quality and workmanship you expect.
Optimally designed driver unit and low-resonance transmission in cast aluminium housing.
Power: 160 watts max. / 75 Watt RMS output power.
Sony: original power IC (integrated circuit) is designed for precise and clear low-end.
Design: ultra-slim and flat subwoofer in a closed modern aluminium housing.

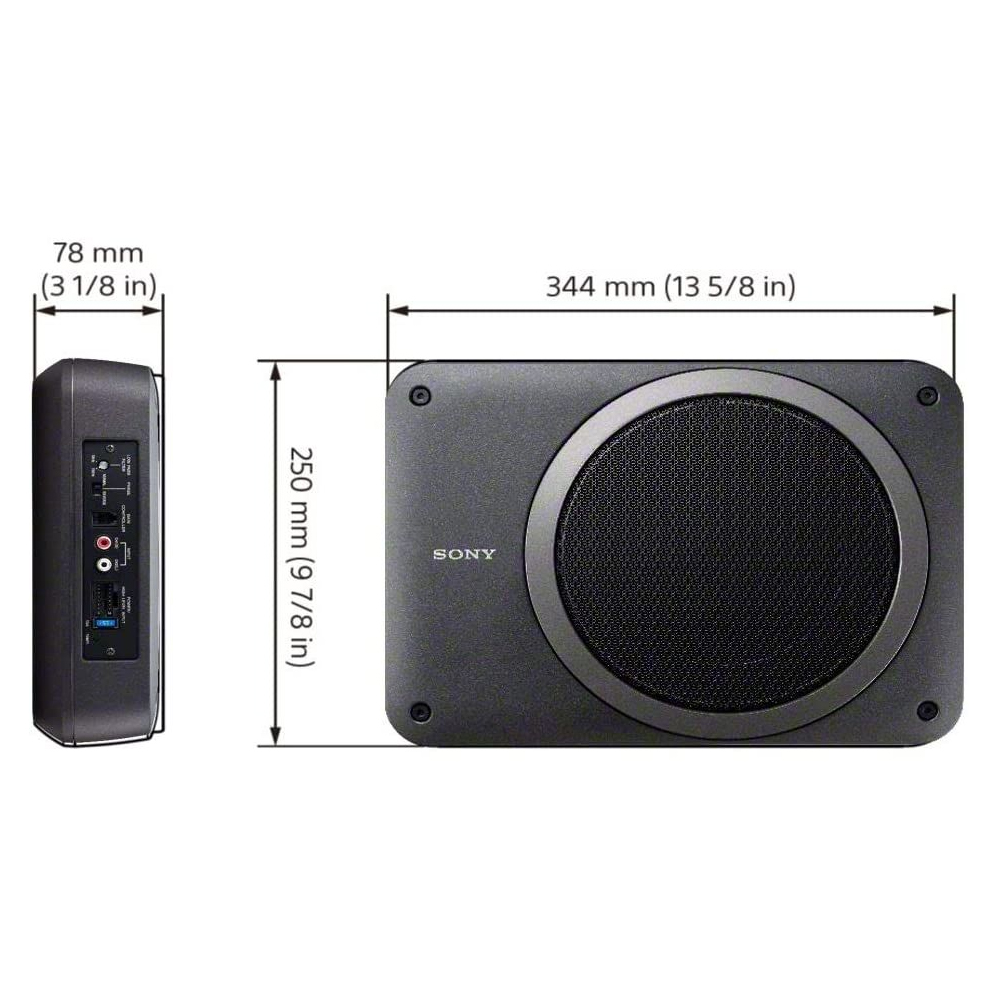

Dimensions: 34.4 cm wide x 25.0 cm long x 7.8 cm deep.

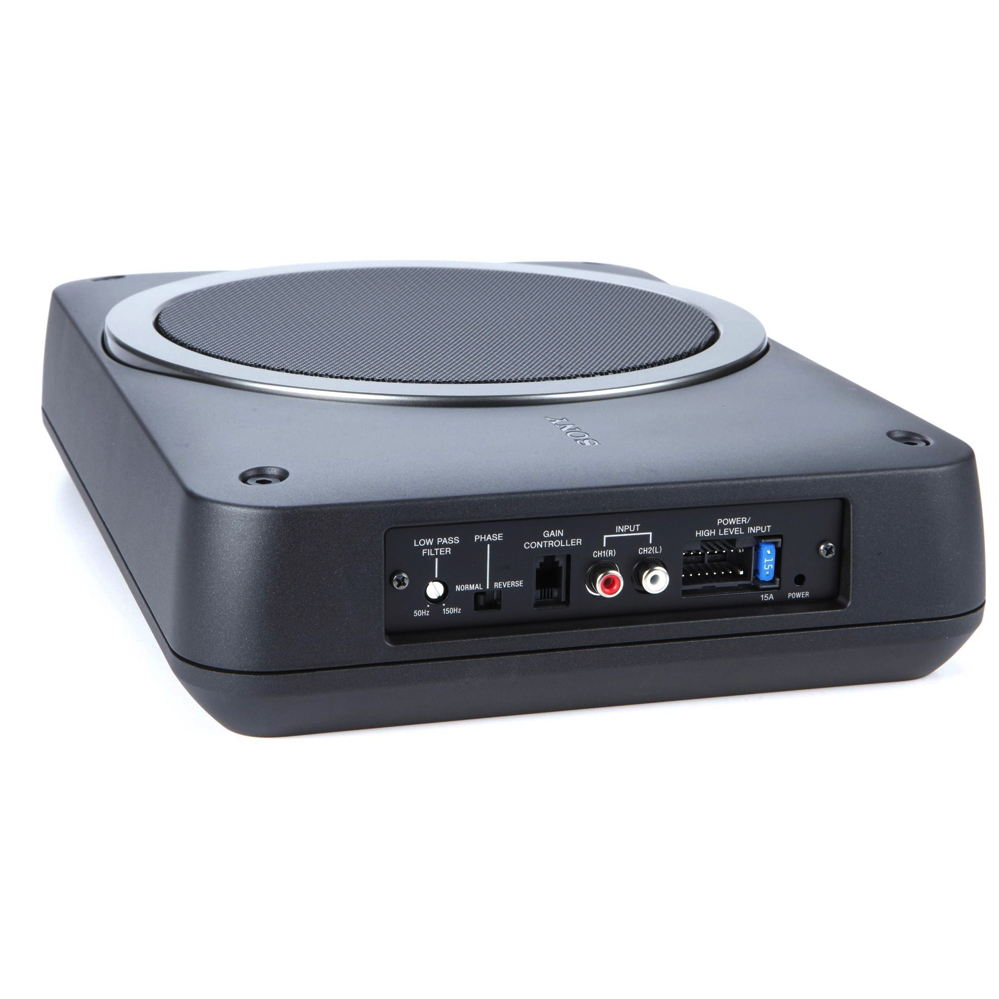

Easy to use: controls and terminal on just one side for better control.

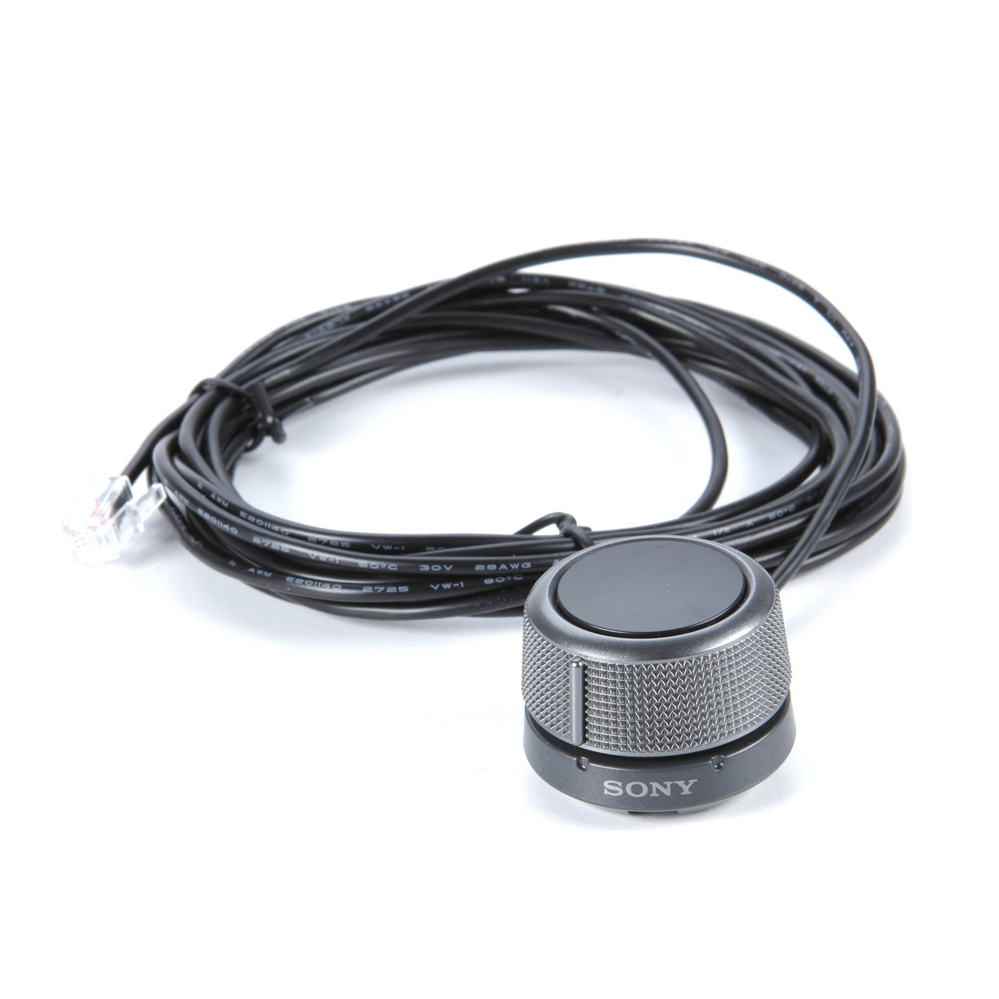

Accessories: wired remote control to control the volume from the driver's seat.
- Size & Weight
- Dimensions (W x H x D) 344 mm x 78mm x 250 mm
- Weight 4.86 kg
- Speaker System
- Configuration DVC
- Size 8" (20 cm)
- Effective Frequency Range 20Hz - 200Hz
- Impedance (ohms) 2-ohms + 2-ohms
- Diaphragm Material Paper
- Magnet Material Ferrite
- Surround Material Rubber
- Low Pass Filter 50Hz - 150Hz
- Low-Pass Filter Slope 12dB/oct
- Rated Output Power/THD(14.4V 20Hz-20kHz) At 2-ohms 75W/1.0%
- Maximum Output Power (14.4V) At 2-ohms 160W
What's in the box:
- Powered subwoofer
- Wired remote control with attached 13' cord (has 4-conductor RJ-14 plug on the end)
- Wiring harness (13' Power and Ground/ 10' Remote turn-on/ 10' Speaker level input)
- 4 Mounting brackets
- 1 Remote mounting bracket
- Adhesive-backed remote mounting pad
- Four M5x8mm Machine screws
- Four 3/4" Screws
- Two 1/2" Screws
- Two 3/16" Screws
- Warranty information
- Wiring instructions printed on the box
